China MIDIS AV Over IP Systems Manufacturers Suppliers Factory

Your Professional MIDIS AV Over IP Systems Supplier!

Tendzone, established in 2010, is a global leader in providing advanced audio-visual (AV) solutions and manufacturing high-quality AV products. We specialize in a wide range of cutting-edge technologies, including audio processors, microphones, speakers, power amplifiers, AV over IP systems, digital conference systems, and MIDIS Distributed Multimedia Transmission Control Systems. Our solutions are trusted across industries such as conference rooms, command centers, education, multi-functional halls, and stadiums.

2CH 2K60 4:4:4 Network AV Encoder/Decoder
The Tendzone SKY-2622 is a multimedia distributed interactive system integrated cloud node, an integrated codec device, supports manual switching to encoding or decoding cloud node, system deployment
2K60 4:4:4 Network AV Encoder/Decoder
The Tendzone SKY-2611 is a multimedia distributed interactive system integrated cloud node, an integrated codec device, supports manual switching to encoding or decoding cloud node, system deployment

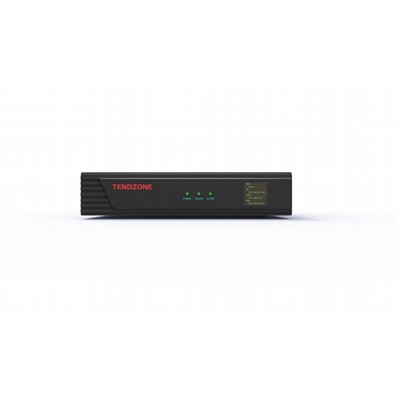

8K60 Network AV Encoder/Decoder
The Tendzone SKY-8611 is a multimedia distributed interactive system integrated cloud node, an integrated codec device, with three specifications, supports manual switching to encoding or decoding
4K AV Over IP Encoder Decoder
The Tendzone MCN - 4611 is a multimedia distributed interactive system integrated cloud node, an integrated codec device, supports manual switching to encoding or decoding cloud node, system
Expansion MIDIS System Server
The Tendzone MCU-1000 platform is the server of MIDIS AV over IP system, supporting 2000 codec management. The server adopts X86 architecture and LINUX system, and has functions such as user
4K60 4:4:4 Network AV Encoder/Decoder
SKY-4611 is a multimedia distributed interactive system integrated encoder or decoder, an integrated codec device, supports manual switching to encoding or decoding node, system deployment supports
Transcoding Media Service Platform
MCU-1090 is a streaming media processing component of the distributed platform system, used for streaming media forwarding and transcoding, supporting third-party mainstream brand standard monitoring
MIDIS AV Over IP Server
MCU-1070 is the central server of the distributed platform system and the core component of the system. The platform has user management, authorization management, rights management, device

Why Choose Us

Expertise & Experience

With years of experience in manufacturing and systems integration, our skilled team optimize your AV environment for exceptional performance and ease of use.

Tailored & Flexible Services

Recognizing that each client has unique needs, we collaborate closely with you to create solutions that are perfectly suited to your specific requirements.

Quality Control

All our products undergo rigorous testing to ensure they meet the highest standards of durability and performance.Our commitment to cutting-edge technology ensures reliability, outstanding performance, and seamless integration with your systems.

Reliable Support & Maintenance

Our dedicated team provides comprehensive support throughout the project lifecycle, project design, product recommend and installation suggestions, technical assistance, ongoing maintenance and support.

OEM/ODM Service

Our dedicated customer support team offers reliable technical support, quick response times, and preventive maintenance service.

OEM Service

As a professional AV provider, We focus on understanding the unique requirements of our clients.Identify any technical limitations or challenges the client currently faces, such as space constraints, budget limitations, or specific user needs.

Logo
Package
Colors
Materials

ODM Service

Maintenance Services: Offer client-customized maintenance plans based on usage, equipment types, and client preferences.Increased lifespan and reliability of the AV systems, leading to a better overall client experience.

Communicating
Confirming
Customizing

Our Best-Selling MIDIS AV Over IP Systems Types

MIDIS AV Over IP Systems
MIDIS AV Over IP Systems refers to the transmission of audio and video signals over network infrastructure using Internet Protocol (IP). Each connection typically requires its own cable, and scaling the system means adding more physical infrastructure.

AV Over IP Encoder Decoder
AV over IP encoder decoder play a crucial role in the realm of radio and television broadcasting, serving as essential components that enable seamless transmission and reception of signals. AV over IP encoder decoder are designed to handle various frequencies and signal types, ensuring that broadcasters can deliver high-quality audio and visual content.

MIDIS AV Over IP Systems Specification

General Performance
Hardware Configuration	Domestic codec chip, self-controllable ; developed based on embedded Linux system , no risk of virus or Trojan intrusion;
Front Panel	1.3-inch LCD screen, displaying device name, device model, hardware version, software version, serial number, and IP address information ; 3 status indicators: PWR, RUN, and LINK;
Video Interface	2- way HDMI video input; 2-way HDMI video output; Support HDMI fixed buckle;
Audio Interface	1-way 3.5mm headphone jack input; 1 balanced MIC audio input, supporting phantom power supply; 1 balanced LINE audio input; 1 balanced LINE audio output;
Data Interface	1-way USB 3.0 Host; 1-way USB 2.0 Host; 1 type-c interface, supporting OTG ;
Control interface	1 relay; 1 IO; 1 IR; 1 RS232; 1 RS485; 1 RS232 debug port;
Network Interface	1 1000M bps optical fiber network port; 1 1000M bps Ethernet port, supporting POE power supply;
Power interface	1 DC power interface, 12V/2A input;
Device power consumption	≤ 12 W ;
Leakage protection current	0.25mA
Work Environment	Temperature: 0~45℃; Relative humidity: 10%～90% RH ;
Storage Environment	Temperature: -20℃～60℃; Relative humidity: 5%～90% RH ;
Installation	Two 1U cabinets installed side by side;
Size	Product size: 220190 45mm ; Packing size: 560408135mm; Net weight: 1.28KG; Gross weight: 4.12 KG ;

Benefits of MIDIS AV Over IP Systems

Scalability

MIDIS AV over IP systems can be easily expanded by adding new endpoints to the network. Unlike traditional matrix switchers with fixed input/output configurations, network-based systems can grow organically as needs change.

Flexibility

The ability to route any source to any destination without physical limitations provides unprecedented flexibility in system design and operation. Systems can be reconfigured through software without changing physical connections.

Cost-Effective

MIDIS AV over IP systems often prove more cost-effective in the long run due to reduced cable infrastructure, easier maintenance and troubleshooting, lower costs for system expansion, and the use of standard network equipment.

The Basic Principle Of MIDIS AV Over IP Systems

MIDIS AV over IP systems is a technology to transport audio and video over a network. The encoder, also known as a transmitter. It can be one source to one display, or many sources to many displays. Along with audio and video, MIDIS AV over IP systems commonly provides extension/distribution of IR, RS-232, USB, and LAN, allowing KVM applications, control of sources/displays, and extension of the network.

Applications of MIDIS AV Over IP Systems

01/

Digital signage
Digital signage networks, which are used in everything from retail stores to airports, rely on the seamless distribution of content across multiple screens. MIDIS AV over IP systems makes this process seamless, especially when dealing with large installations.

02/

Live event streaming
For live events like concerts, conferences, or sports, MIDIS AV over IP systems allows you to deliver high-quality video and audio to remote viewers without missing a beat. Its ability to support multiple live streams simultaneously makes it perfect for capturing and broadcasting every moment with clarity.

03/

Command and control centers
Command and control centers, which can be used for security monitoring, traffic management, or emergency response often require the distribution of numerous video feeds across multiple screens.

04/

Manufacturing facilities
In manufacturing facilities, MIDIS AV over IP systems is being used to improve operational efficiency and communication. These environments typically need to display training videos, quality assurance procedures, or even safety protocols across various points on the factory floor.

After-Sales Services

Technical Support

Professional Tech support team ensure any issues with the AV system are promptly addressed.

Maintenance Services

Offer client-customized maintenance plans based on usage, equipment types, and client preferences.Increased lifespan and reliability of the AV systems, leading to a better overall client experience.

Upgrades and Updates

Keep to provide the upgrade software to our clients.

Feedback and Improvement

Customer's feedback will keep to foster continuous improvement in service.

Packaging and Shipping

Packaging	Plastic bag, paper box, customizable
Transportation methods	Road transport, rail transport, sea transport, air transport

Honor And Qualification

FAQ

Q: What advantages does MIDIS AV over IP systems have?

A: With MIDIS AV over IP systems, users can have more flexibility, scalability, and control over their audio-video distribution. It offers systems that are easily upgradable and customizable to fit changing needs.

Q: Can existing infrastructure be used with MIDIS AV over IP systems?

A: Yes, the MIDIS AV over IP systems allows the use of existing network infrastructure for the distribution of audio-video. When using the infrastructure, ensure it meets the requirements for bandwidth and quality for AV content.

Q: What components are included in MIDIS AV over IP systems?

A: Key components of MIDIS AV over IP systems are encoders, network switches, decoders, and control software.

Q: What network switches are best for MIDIS AV over IP systems?

A: Managed network switches are suitable for MIDIS AV over IP systems since they offer control and features that help in the troubleshooting of the AV distribution.

Shenzhen Tendzone Intelligent Technology Co., Ltd. is one of the most professional midis av over ip systems manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy high-grade midis av over ip systems made in China here from our factory.
